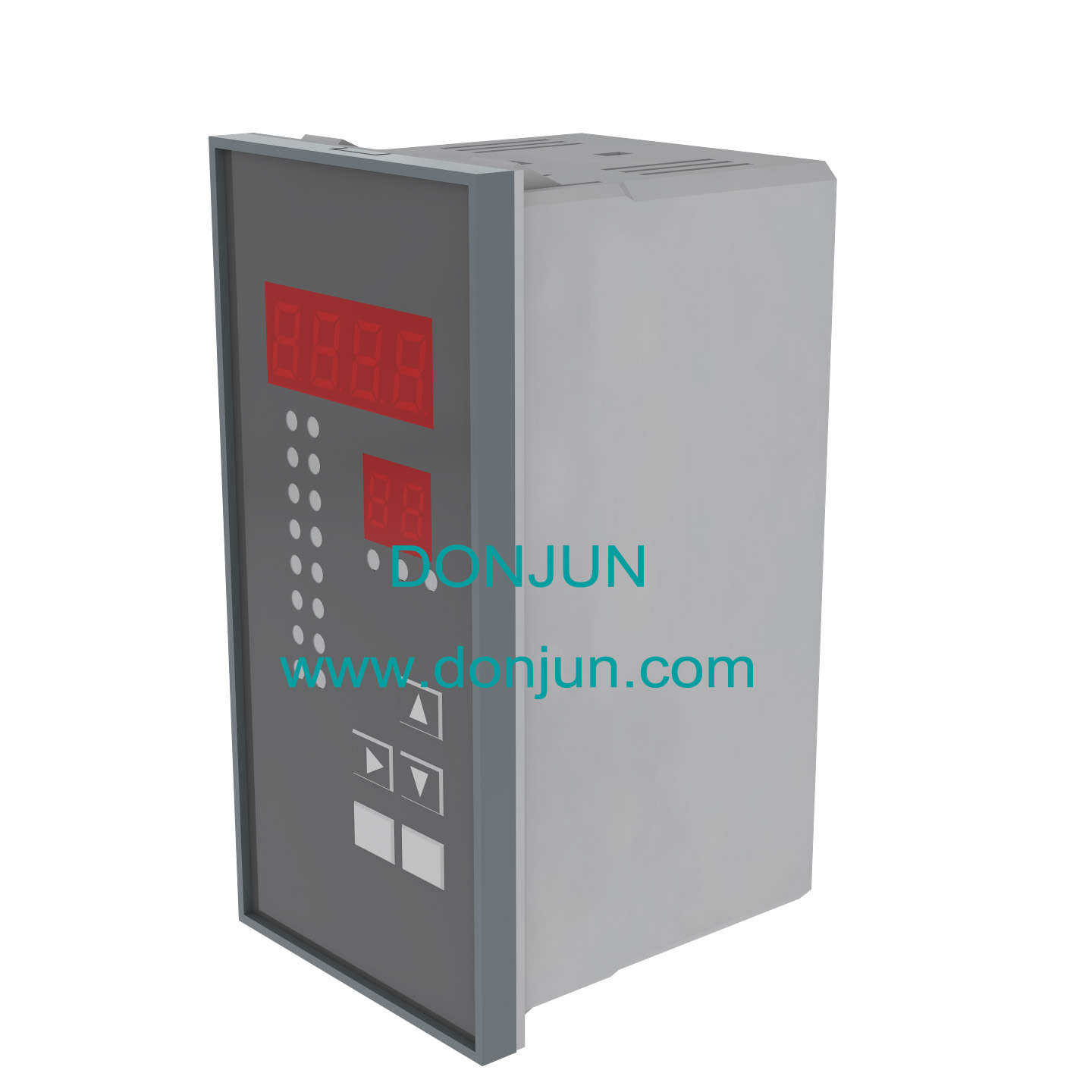

DJ1600 Multi-purpose meter

Multi-purpose cycling meter multipoint monitor the input signal of 4~20mA or PT100,used for monitoring parameters, such as liquid level, temperature, pressure etc.

Input signal: PT100、4～20mA
Max. Loops: 16
Outputs: Relay contacts (AC250V/5A)
Outputs function: failure and excessive alarm (dry contact)

Specialty:
1. Display list center on MPU and process the signal by software;
2.The functions: inner self-checking function, inner loop fault judgment;
3. To compose kinds of system is easy with RS485 communication output interface;
4. Adjust “set point” in digital. Freely adjust the measure range;
5. Four bits LED digital display and analog display with a light beam;
6. High accuracy, reliably, general versatility;
7. The meter alarm output can be set.
