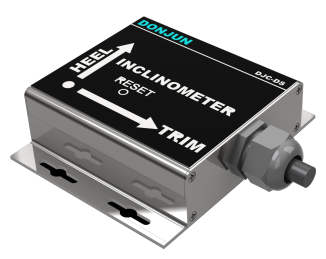

DJC-DS Trim-heel sensor was designed by DONJUN;
Used for new-building ship and operating ship;
Quickly and accurately output the communication data of vertical and horizontal tilt angle;
Work with DJC-QD/DJC-QS electrical inclinometer.

Technical data
1. Type:DJC-DS
2. Power:DC24V
3. Current:15mA
4. Precision:±1%
5.      Communication mode:RS485
6. Response time:≤0.5ms
7. Output angle value range:0-90°
8. Size:L50mm*W52mm*H28mm
9. Ambient temperature range:-25℃ ～ + 55 ℃
10. Degrees of protection(Casing):IP68
11. Casing material(Body): ABS（or choice）
12. Weight:210g
