Single Action Butterfly Valve


Single direction actuated butterfly valve can be actuated by only 1 circuit of hydraulic pipe. The system was so simple that can save half hydraulic pipe. With spring reset and accumulator reset type.

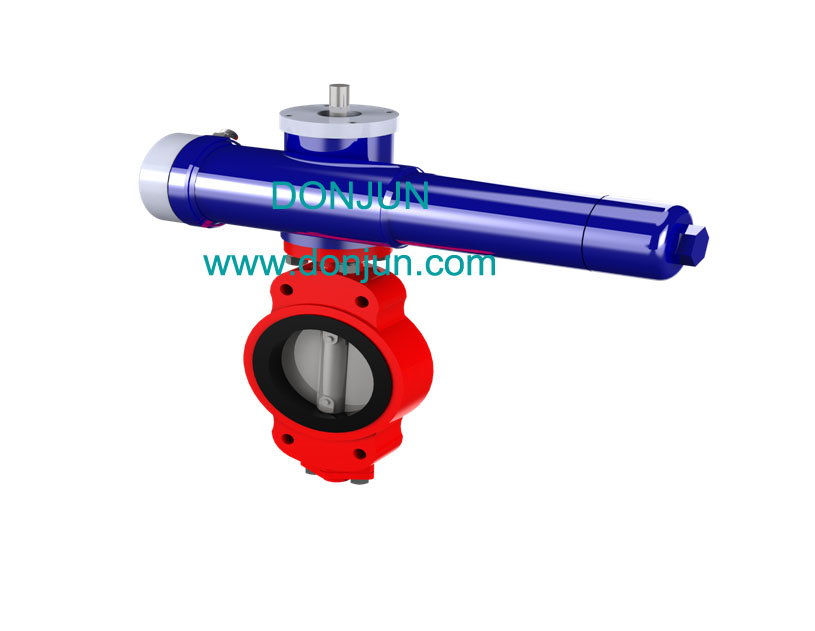

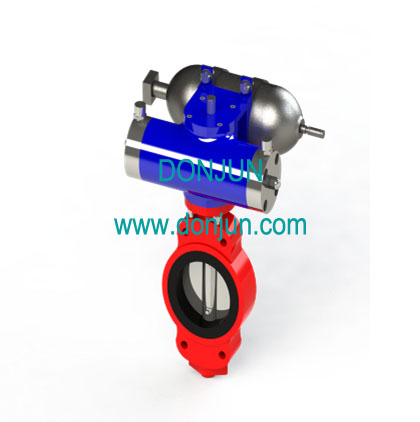

Spring reset type                            Accumulator reset type


Features:
1.Stable and continuous torque output
2.Concise design
3.Saving installation space(concave axis design, single-side operation
4.ISO standard flange
5.Adjust table faucet
6.Robotistic local position indicator(Optional)
7.Other remote position indicator

8.Immersion installation


Technical data:

Rated Output Torsion

1000-20000NM

Protection Class

IP68

Material

Carbonized Steel or Stainless Steel

Weight

10-150Kg

Working Pressure

80Kg/cm2

Test Pressure

400Kg/cm2

Butterfly Valve Diameter

50-1200mm

Seal Material

NBR or Designated Material
