Screw actuated stop valve/ check valv

(Isolation valve for FPT collision bulkhead)


Hydraulic screw actuated stop valve and stop check valve, can be widely applied in isolation valve for FPT collision bulkhead, cargo oil system, ballast water system and bilge water system.

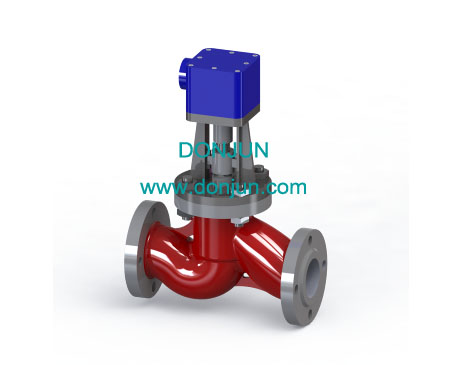

Screw actuated stop valve/check stop valve



Features:

1.Stable and continuous torque output
2.Concise design
3.Saving installation space(concave axis design, single-side operation
4.ISO standard flange
5.Adjust table faucet
6.Robotistic local position indicator(Optional)
7.Other remote position indicator
8.Immersion installation


Technical data:

Rated Output Torsion

1000-20000NM

Protection Class

IP68

Material

Carbonized Steel or Stainless Steel

Weight

10-150Kg

Working Pressure

80Kg/cm2

Test Pressure

400Kg/cm2

Butterfly Valve Diameter

50-1200mm

Seal Material

NBR or Designated Material
