Oil Discharge Monitoring Equipment

Oil discharge Monitoring Equipment is designed to monitor and control any discharge of pollution into overboard the sea from any ships in accordance with the rule requirement of MARPOL 73/78 Annex I & II ,and MEPC.108(49)-2004

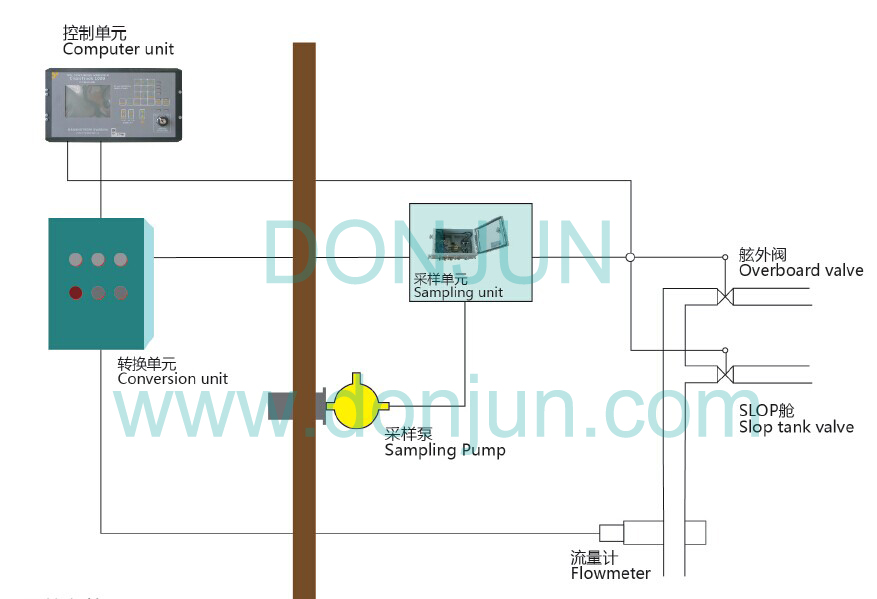

ODME consists of computer unit, analyze unit, sampling unit & sampling pump, pneumatic overboard valve & slop tank valve, flow meter etc.

System Parameter:
System power: AC220V/50Hz(+6% — -10%) DC24V(30% — -25%)
Measuring range :0-999PPm
Measuring accuracy : 10% F·S
Response time : ＜40s
Work environment conditions : humidity 80% ; temperature : 0-50℃

Supply content :
Overboard valve : 1 PC
Recycle valve : 1 PC
